Mini Residendual Current Circuit Breaker Manufacturer, Mini RCCB

Mini Residendual Current Circuit Breaker

Low voltage electrical systems employ electrical protection devices called Mini Residual Current Circuit Breaker, or Mini RCCB.

It is similar to an MCB, but with the added functionality of detecting earth leakage currents. It can provide protection against electric shock by automatically disconnecting the circuit when a fault current is detected. Mini RCCBs are typically used in residential and small commercial electrical installations, providing an additional layer of safety and protection for people and equipment. They come in different sizes and current ratings to suit various applications.

Types of Mini Residendual Current Circuit Breaker

Factors to Consider in Selecting the Right Type of Mini RCCB for Electrical System

Current Rating

The current rating of an MRCCB should match the electrical load and the size of the circuit to be protected to ensure proper functioning.

Sensitivity Rating

The sensitivity rating of an MRCCB should be chosen based on the level of earth leakage current that is expected in the electrical system.

Trip Curve

The trip curve of an MRCCB should match the application and the type of load. Different curves are used for different types of loads.

Brand and Quality

Selecting a reputable brand and high-quality MRCCB is essential for reliable protection against electrical hazards. Consider purchasing from a trusted supplier that offers warranties and technical support.

Advantages of Mini Residual Current Circuit Breaker in Ensuring Safety in Electrical Systems

Electric Shock Protection

Mini RCCBs interrupt circuits when detecting earth leakage current. This protects against electric shock, improving electrical safety.

Fire Prevention

Overheating electrical circuits can cause fire outbreaks. The Mini RCCB interrupts these circuits quickly, preventing electrical fires.

Enhanced Protection

An additional layer of protection is provided by the Mini RCCB. Especially essential in residential and small commercial installations.

Early Warning

Detecting low-level fault currents, the Mini RCCB provides an early warning. This helps prevent more significant issues by tackling developing earth faults.

Easy Reset

The Mini RCCB can be reset manually similar to MCBs. This restores power quickly after tripping due to faults, boosting efficiency.

FAQs about Mini RCCB Circuit Breakers

Are mini MCCBs safe?

Yes, mini RCD circuit breakers are safe and effective for protecting against electric shocks and leakage currents in small-scale electrical systems. They quickly disconnect power when a leakage is detected, reducing the risk of electrocution and fire hazards. Their compact design makes them ideal for residential and commercial applications where space is limited.

How does a Mini RCCB work?

A Mini RCCB works by continuously monitoring the flow of electricity in a circuit. It detects any leakage current caused by insulation failure or faulty wiring. If the leakage exceeds a safe threshold, the Mini RCD circuit breakers instantly trips, cutting off power to prevent electric shock and fire hazards. Its compact design makes it ideal for residential and small commercial applications, ensuring enhanced electrical safety.

Can a Mini RCCB replace an MCB?

No, a Mini RCCB cannot replace an MCB because they serve different protective functions. A Mini RCCB safeguards against electric shocks and leakage currents, while an MCB (Miniature Circuit Breaker) protects against overcurrent and short circuits. For complete electrical protection, both devices are often used together—an MCB prevents circuit overloads, while a Mini RCCB ensures safety by disconnecting power during leakage faults, reducing electrocution and fire risks.

Mini Residendual Current Circuit Breaker

Types of Mini Residendual Current Circuit Breaker

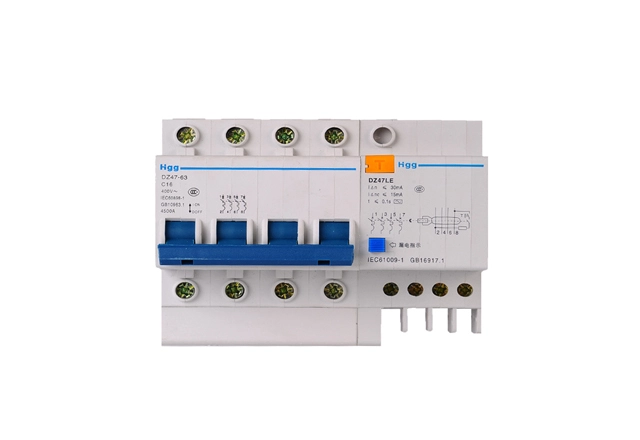

DZ47LE-63 Mini Residendual Current Circuit Breaker

DZ47LE-32 Mini Residendual Current Circuit Breaker

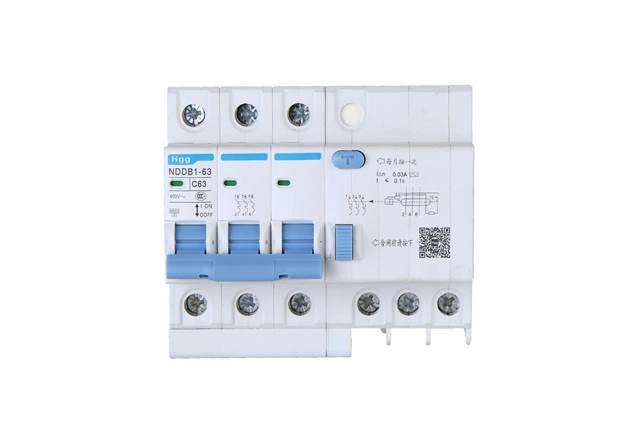

NDDB1LE-63 Mini Residendual Current Circuit Breaker
