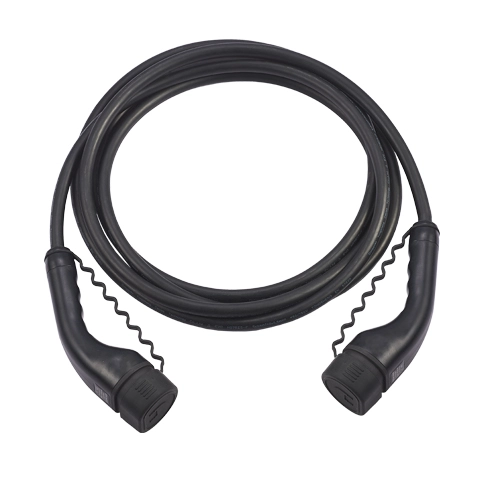

3.7KW Type 2 To Type 2 EV Charging Cable
3.7KW Type 2 To Type 2 EV Charging Cable is ideal for charging your electric car Type 2 to a maximum power of 3.7kW. LIA AC Type 2 To Type 2 EV Charging Cable has one type of connector 2 for the charging station, and another type 2 for the electric vehicle. You can use the cable to the charging stations of all power safes. If you plug your cable into a more powerful charging station that is 3.7kW, then it will automatically limit the recharge power to 3.7kW.
Specification of 3.7KW Type 2 To Type 2 EV Charging Cable
| Color | Black/white/red/blue/gray |
| Rated Current | 16A |
| Rated Voltage | AC 240V (single phase) |
| Charging Power | 3.7KW |
| Mechanical Life | unload plug & off >10000 times |
| Working Temperature | -30℃~65℃ |
| Impact Resistance | 1m height drop and 2 Tons vehicle run-over pressure |
| Insulation Resistance | >1000MΩ |
| Contact Resistance | 0.5MΩ MAX |
| Protection Class | IP54 |
| Contact Pin | Aluminum alloy, silver-plated surface, insulated top |
| Shell Material | Thermoplastic (flame retardant rating V-0) |

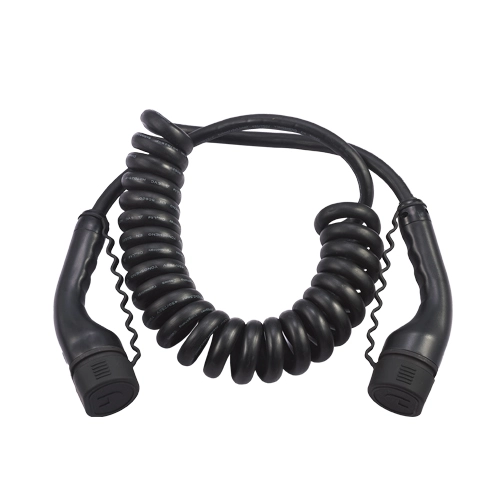

| Cable Length | 5m (Length is optional, Straight line or Spring line is optional) |
Highlight Of 3.7KW Type 2 To Type 2 EV Charging Cable
Nice appearance.
Hand-held ergonomic design.
Easy plug.
Our ev charger cable types solutions are designed for convenience and mobility, allowing EV owners to charge their vehicles anywhere with ease.
