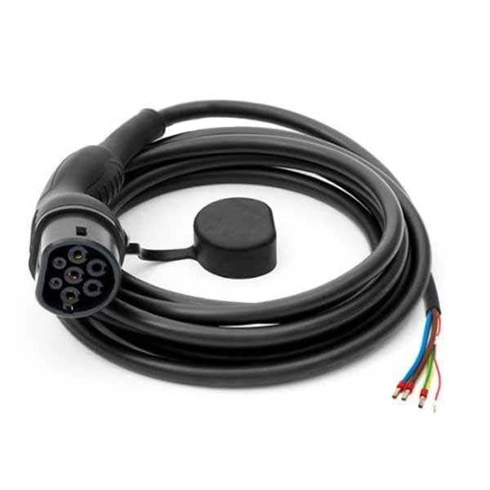

7.2KW Type 2 To Type 2 EV Charging Cable
Religare 7.2KW Type 2 To Type 2 EV Charging Cable material is TPU, the best material in the market.at present, conforms to the latest European Union standards, lighter and thinner, long-time durability, and low-temperature resistance.
Specification of 7.2KW EV Charging Cable Type 2 To Type 2
| Color | Black/white/red/blue/gray |
| Rated Current | 32A |
| Rated Voltage | AC 240V (single phase) |
| Charging Power | 7.2KW |
| Mechanical Life | unload plug & off >10000 times |
| Working Temperature | -30℃~65℃ |
| Impact Resistance | 1m height drop and 2 Tons vehicle run-over pressure |
| Insulation Resistance | >1000MΩ |
| Contact Resistance | 0.5MΩ MAX |
| Protection Class | IP54 |
| Contact Pin | Aluminum alloy, silver-plated surface, insulated top |
| Shell Material | Thermoplastic (flame retardant rating V-0) |
| Cable Length | 5m (Length is optional, Straight line or Spring line is optional) |
Highlight Of 7.2KW EV Charging Cable Type 2 To Type 2
We have used our extensive experience to ensure that our cables provide the best possible user experience in all conditions. While other cables become stiff in winter, LIA cables remain soft and flexible even in severe cold. Our cap and terminals are designed to withstand moisture and heat.
LIA 7.2KW Type 2 To Type 2 EV cable for Charging is designed to be recyclable. In addition to only using recyclable materials, this is achieved by not using so-called potting in our connectors. Potting is a technique for water- and impact-proofing that involves filling electronic products with plastic, rubber, or resin compound. This creates additional waste and makes it hard to separate out components and materials for reuse and recycling later.
Explore our selection of high-quality portable ev charging cable, engineered for durability and safety to ensure reliable electric vehicle charging.
