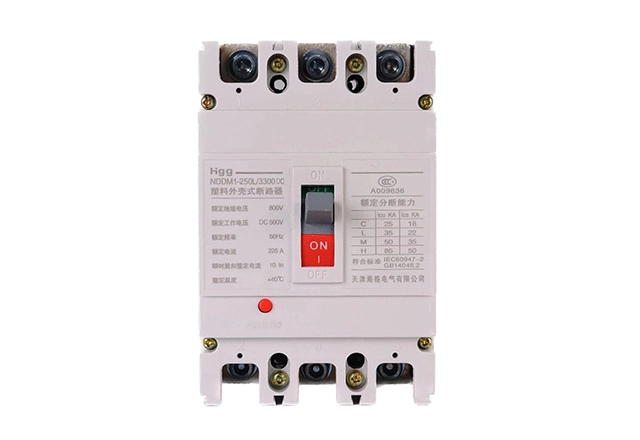

DC MCCB (Molded Case Circuit Breaker)

How Does DC MCCB Molded Case Circuit Creaker Work?

•

  Breaker

  The internal breaker in the DC molded case circuit breaker detects electrical faults and mechanically trips the breaker to stop the flow of current. This mechanism ensures that electrical equipment remains protected from potential damage due to overloads, short circuits, and other malfunctions. When tripped, the DC moulded case circuit breaker immediately interrupts the flow of current, preventing any further movement of electrical current through the circuit. This quick response helps to protect electrical equipment from damage and prevents any potential safety hazards within the system.




•

  Contacts

  DC molded case circuit breakers contain a built-in internal breaker that can detect electrical faults such as overloads or short circuits. Once a fault is detected, the internal breaker trips and interrupts the flow of current, preventing any damage to electrical equipment.




•

  Instantaneous Functions

  The instantaneous function of DC moulded case breakers immediately detects fault current within electrical systems and circuits, ensuring rapid protection. When a fault is detected, the DC moulded case breaker quickly interrupts the flow of current, preventing excess current from damaging electrical equipment. Due to their quick response and effective protection, DC moulded case breakers are integral to ensuring the safety and reliability of electrical systems and equipment.




•

  Adjustable Tripping Settings

  DC molded case circuit has tripping settings that can be adjusted to a specific current level. This feature ensures the dc molded case circuit breaker will trip and provide appropriate protection.




•

  Toggling

  DC MCCBs have toggles that provide users with manual control over electrical flow. This feature allows for convenient operation and control over the system.
